Technical Center

Registration

Portal link:
https://manage.terracloud.de

Structure of the portal

Dashboard

The portal is divided into different areas:
On the left side you will find links to, among other things, customer management, virtual computers, user management and protocol.
In the middle you can see the currently selected page; the screenshot shows the dashboard.
This offers a clear summary of your IaaS products, in the example you can see that there are 3x VMs, two of which are with Windows and one with Linux.
You can also see that all VMs are currently active and how many vCores, RAM, storage space and images are assigned or mounted.
At the bottom right you can configure how often this dashboard should be updated.
If you click on the banner, you will go to the Terracloud wiki https://wiki.terracloud.de.
At the top right you will find the option to change the theme of the website and make various settings related to your account.

Reseller management

In the reseller management you can set up the links as an indirect reseller.
This is required to obtain the respective products via the Terra Cloud.

CSP

For detailed information about CSP, please take a look at the CSP section in the TerraCloud Wiki.

SecurePoint

In order for you to be able to book SecurePoint services with us, a link is also required here, both at the reseller and end customer level.
This link will enable seamless integration in the future, as well as the management of central Securepoint functions in the Securepoint reseller portal.
Until now, this link was managed in the Terra Cloud Center.

We will gradually integrate this function into the Technical Center.

Implementation

1. Log in to the Technical Center and navigate to the reseller administration.

2. In the SecurePoint area you can see whether there is currently a link to SecurePoint. If no green tick is present, there is currently no link.

3. If so, please click Edit.

4. In the next step you have the choice to link an existing SecurePoint account or create and link a new one.

5. The former asks for the credentials for the existing SecurePoint account, the latter asks for a password for the new SecurePoint account.

6. Finally, it must be confirmed again that Terra Cloud can order or cancel services from SecurePoint on your behalf.

7. In the last dialog box you will see both a green tick confirming the link and the option to remove an existing link.

8. You will then see in the reseller management overview that the link is available.

Customer management

You can view all the customers you have created via customer management. When you select a customer you will find the packages booked.

CSP

For detailed information about CSP, please take a look at the CSP section in the TerraCloud Wiki.

SecurePoint

A SecurePoint link must also be created at the end customer level so that FaaS services can be booked for the end customer.

Implementation

1. Log in to the Technical Center and navigate to customer management.

2. Select the relevant end customer.

3. Click Service Settings.

4. In the SecurePoint area you can see whether there is currently a link to SecurePoint. If no green tick is present, there is currently no link.

5. If so, please click Edit.

6. Here you have the option to link an existing account or create a new account in the lower area.

7. If you want to link an existing account, please expand the bottom list of available accounts and select the appropriate end customer.

8. Finally click on Link Account.

User management

Every user created can be viewed and edited via the user management.

A new user can be created using the “Create user” button.

User roles

Reseller Admin
Administrator of the specialist dealer, full access to everything that belongs to the specialist dealer.
This person can appoint any reseller employee as a reseller admin, but then automatically loses the status reseller admin and becomes a reseller employee.
There can always be only one Reseller Admin.

Reseller Employee
An employee of the specialist retailer who can initially only read all environments that belong to the specialist retailer. Access to VMs can be changed globally using permission templates.
This person can create additional customer employees.
The number of reseller employees is not limited.

Customer Employee
An end customer account that is trapped in its end customer area. A user in end customer A cannot gain access to data from end customer B in any way.
The number of customer employees is not limited.

Create permission templates

Within the user management, you can use templates (so-called authorization templates) to create appropriate roles for access to the virtual systems and then assign these roles to individual employees.

You can delete and edit a role at any time; a maximum of 10 roles per reseller is allowed.
Using the settings of the respective user, you then select the desired role that the employee should have:

When assigning the role, access to the virtual machines is set once based on the templates; authorizations that have already been assigned are lost.
Once assigned, all future orders are granted permissions based on the role. You can individually adjust the permissions for existing systems at any time.

Group management

In group management you have the option of dividing your customers' virtual computers into different groups.
You can use this to shut down or reset virtual computers together, for example.

In the Group Members tab you can see the existing groups and their members.

You can define additional groups using the Add Groups button and assign the respective resources to the groups using the All Objects tab.

Virtual computers

Via the virtual computers item you can see all booked VMs and their status, variant and status.

If you select the small square with an arrow on the right, you can access direct control and detailed information about the respective virtual computer.

The current IP configuration can also be viewed on the page and the VM can be started, restarted, shut down, reset and switched off.
Using the “Connect (Console)” button you will receive an RDP shortcut with which you can establish a connection to the VM over the Internet.
Please use the “initial password” as your password, which you can also find on this page.
Furthermore, on this page you have the option to create a snapshot if the feature has been booked and to set the boot order.
In order to get the login mask after opening the RDP connection, you usually have to press CTRL+ALT+DEL. Unfortunately, this does not work in an RDP connection.
Instead, please use CTRL+ALT+END.

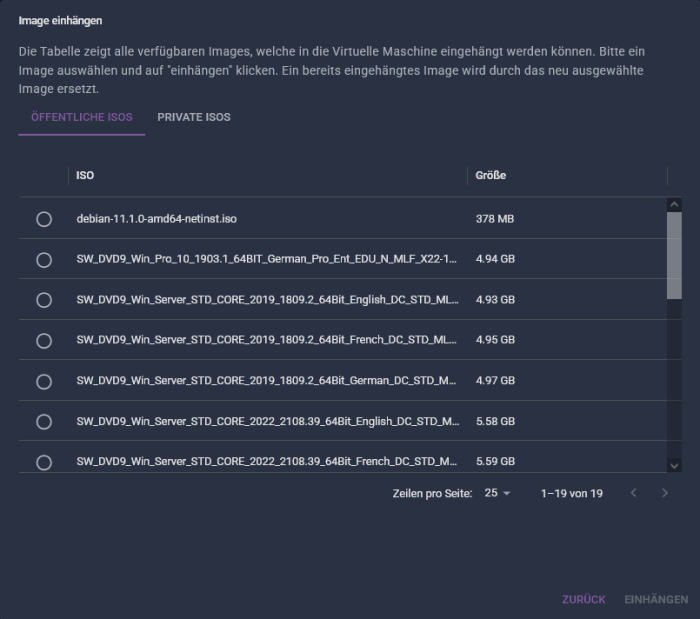

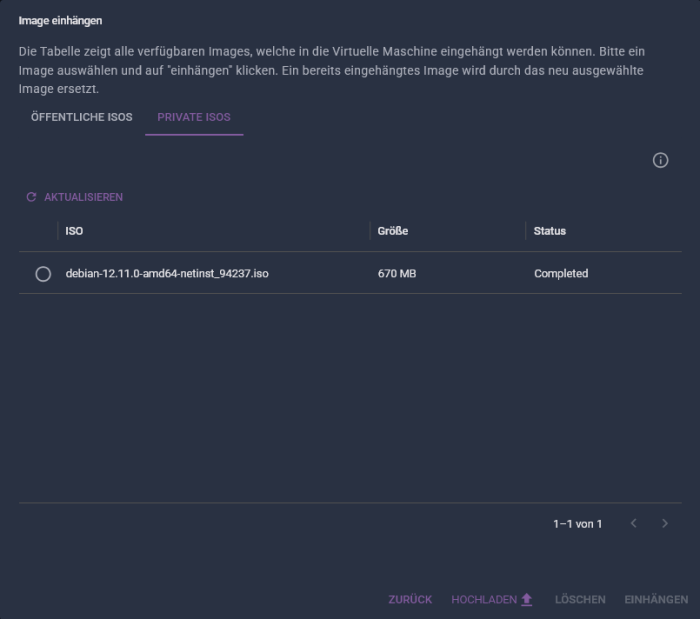

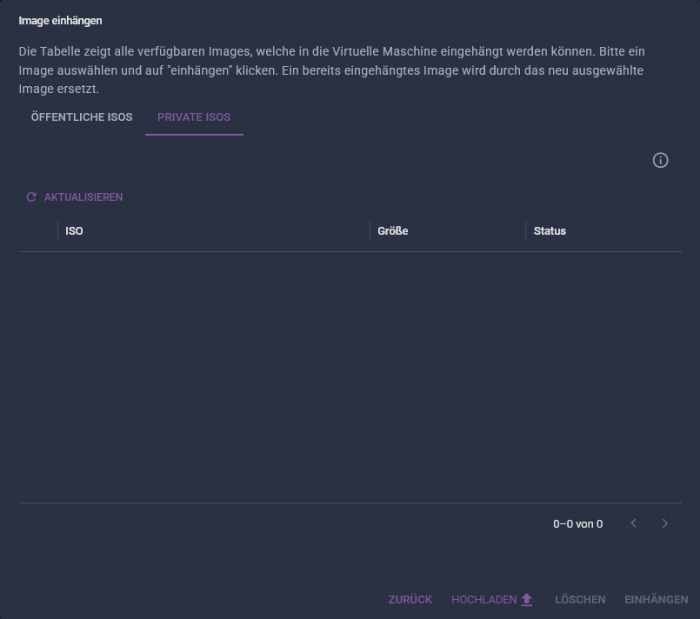

You also have the option to mount ISOs. To do this, please click on the plus sign or on the triangle if you want to unmount it again.
Unfortunately, it is not possible to mount your own ISO using this form.

Physical Servers

General

The Terra Server Manager is used to manage physical onprem servers with Windows Server operating systems via a central dashboard.
The currently available features include:

• View hardware
• Download operating systems
• View warranty status
• View system certificate
• Get driver database
• Driver updates
• Firmware updates
• Retrieval of operating system ISOs

It is also planned for the future that log files can be created by the mainboard and RAID controller for running systems.

Requirements

• The Wortmann serial number (Rxxxxxxx) must be stored in the mainboard firmware.
• The server must be able to reach the manage.terracloud API via Test-NetConnection: Test-NetConnection api-manage.terracloud.de -Port 443


Overview

In the overview you can see all currently added onprem servers with information on name, working name, status, serial number and agent version.
In addition, the agent for new servers can be downloaded on this page and the token for the initial registration of the agent can be generated.

Detail

In the detail view you can see more detailed information about the currently selected server.

In addition to the information in the overview, you can also see data such as the service period or the service description.

Drivers

In the driver view you can centrally update various system drivers such as chipset or VGA drivers.

Firmware

In the firmware view you can update the mainboard firmware for selected server models.
To do this, it is necessary to store the remote management access data in the detailed view.

Operating systems

On the operating system tab you can download selected operating system ISOs.
Server 2019, 2022 and VMware ESXi 7.0 are currently offered there.

Bug fix

You can create log files from the server using the troubleshooting tab.
Mainboard and RAID controller log files are supported.

Licenses

In the licenses area you can view booked CSP licenses and, among other things, deactivate auto-renewal.
For detailed information, please see the CSP section of the TerraCloud Wiki.

Managed IaaS

Under Managed IaaS you will find the administration for booked Managed IaaS environments.

Create tickets

Both at the top and in some tabs of the Technical Center you will see the icon for creating tickets.

After the button has been clicked, a context-related email can be created, which is automatically sent with all information to Support@terracloud.de.
A suitable ticket is automatically opened in our support department.

Protocol

Logs (recent events) can be viewed on the logs page. The search function includes a full-text search that searches across all columns.

Partner Ranking

This overview offers you the opportunity to track your cloud performance and ranking in comparison to other cloud partners.

Help

On the help page you will find various directly linked wiki articles, as well as information on how to reach our Terracloud support.

You will also find an overview of the changes to the Technical Center here.

Settings

In this area you can set your preferred language, date and time format and the number of table rows per page.
Here are the available choices:

• Language: English || German || French || Polish.
• Date format: dd.mm.yyyy || mm.dd.yyyy || yyyy-mm-dd || dd/mm/yyyy || mm/dd/yyyy
• Time format: 24h || 12h
• Time zone: UTC+13 to UTC-11
• Table rows per page: 5 || 10 || 25 || 50 || 100 || 250

These options allow you to customize the interface and display preferences to suit your individual needs.
